The History of UAC Tupolev: A Russian Success Story
- Garth Calitz
- 5 hours ago
- 4 min read
UAC Tupolev is the successor to the Soviet Tupolev Design Bureau (OKB-156, with the design office prefix Tu), established in 1922 by the esteemed aerospace pioneer and engineer Andrei Tupolev. He led the organisation for 50 years until his passing in 1972.
Throughout its history, Tupolev has developed over 100 models of civilian and military aircraft, producing more than 18,000 units for Russia, the Soviet Union and the Eastern Bloc. The company celebrated its 100th anniversary on 22 October 2022. Tupolev is actively involved in multiple aerospace and defence sectors, encompassing the development, manufacturing, and maintenance of both civil and military aerospace products. This includes aircraft, weapons systems, as well as missile and naval aviation technologies.
Tupolev OKB was founded by Andrei Tupolev in 1922, specialising exclusively in aeronautics research and aircraft design. Manufacturing activities are carried out by separate organisations. In the 1920s, Tupolev OKB concentrated on developing all-metal aircraft, drawing directly from the pioneering advancements made by Hugo Junkers during World War I.
During Tupolev's early period, two significant all-metal heavy bombers were developed, featuring corrugated duralumin skins. These were the ANT-4, a twin-engine bomber that first flew in 1925, and the ANT-6, a four-engine model from 1932. The latter served as a precursor to aircraft such as the ANT-20. Tupolev's design philosophy in these aircraft set the standard for heavy aircraft development, both in civilian and military contexts, for many years.
During World War II, the twin-engine, all-metal Tu-2 was among the most effective front-line bombers utilised by the Soviet forces. Numerous variants were produced in significant quantities starting in 1942. Due to metal shortages during the war, wooden rear fuselages were employed in its construction.
Topolev entered the jet age with the development of the jet-powered Tu-16 bomber, which used a sweptback wing for good subsonic performance.
Due to the inadequate fuel efficiency of turbojets for achieving true intercontinental range, the Soviets decided to develop a new bomber, the Tu-20, more commonly known as the Tu-95. This aircraft was also based on the fuselage and structural design of the Tu-4 but was equipped with four massive Kuznetsov NK-12 turboprop engines. These engines provided a unique combination of jet-like speed and extended range. The Tu-95 became the definitive Soviet intercontinental bomber, offering both intercontinental range and jet-like performance. Comparable in many aspects to the Boeing B-52 Stratofortress, it served as a strategic bomber and was adapted for various other roles, including reconnaissance and anti-submarine warfare.
The Tu-16 was developed into the civil Tu-104. The Tu-95 became the basis of the unique Tu-114 medium-to-long-range airliner, the fastest turboprop aircraft ever. One common feature found in many large subsonic Tupolev jet aircraft is large pods extending rearward from the trailing edge of the wings, holding the aircraft's landing gear. These allow the aircraft to have landing gears made up of many large, low-pressure tires, which are invaluable for use on the poor-quality runways that were common in the Soviet Union at the time. For example, the Tu-154 airliner, the Soviet equivalent of the Boeing 727, has 14 tyres, the same number as Boeing's far larger 777-200.
Even before the first flights of the Tu-16 and Tu-20/Tu-95, Tupolev was working on supersonic bombers, culminating in the unsuccessful Tu-98. Although that aircraft never entered service, it became the basis for the prototype Tu-102 (later developed into the Tu-28 interceptor) and the Tu-105, which evolved into the supersonic Tu-22 bomber in the mid-1960s. Intended as a counterpart to the Convair B-58 Hustler, the Tu-22 proved rather less capable, although it remained in service much longer than the American aircraft. Meanwhile, the "K" Department was formed in the Design Bureau, with the task of designing unmanned aircraft such as the Tu-139 and the Tu-143 unmanned reconnaissance aircraft.
In the 1960s, A N Tupolev's son, A A Tupolev, became active with the management of the agency. His role included the development of the world's first supersonic airliner, the Tu-144, the popular Tu-154 airliner and the Tupolev Tu-22M strategic bomber. All these developments enabled the Soviet Union to achieve strategic military and civil aviation parity with the West.
The Tu-144 faced significant setbacks, with crashes occurring in 1973 and 1978, leading to its withdrawal from passenger service in 1978.
During the 1970s, Tupolev focused on enhancing the performance of the Tu-22M bombers, which included maritime variants. The significant presence of these bombers contributed to the establishment of the SALT I and SALT II treaties. Additionally, improvements were made to the efficiency and performance of the Tu-154, ultimately resulting in the development of the highly efficient Tu-154m.
In the 1980s, the design bureau developed the supersonic Tu-160 strategic bomber, notable for its variable-geometry wings. This aircraft is designed to carry nuclear weapons and serves as a crucial element of Russia's nuclear triad. The Tu-160 holds the distinction of having the highest takeoff weight among combat aircraft, with a maximum takeoff weight (MTOW) of 275,000 kg.

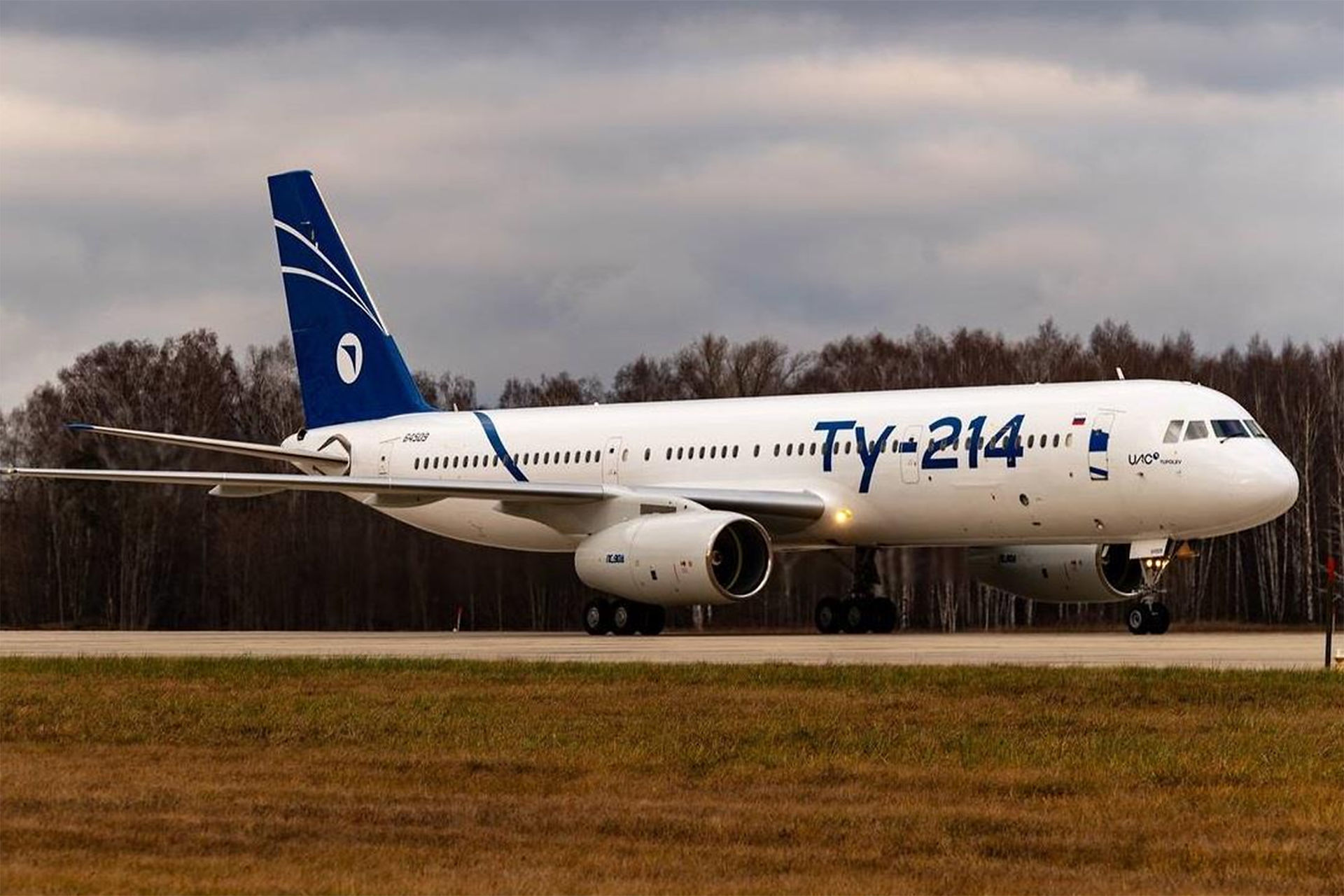

Following the conclusion of the Cold War, research efforts were focused on subsonic civil aircraft, with particular emphasis on operational economics and alternative fuels. Advancements in this field include the implementation of fly-by-wire systems, the adoption of efficient high-bypass turbofan engines, and the development of advanced aerodynamic designs for 21st-century transport aircraft such as the Tu-204/Tu-214, Tu-330, and Tu-334.
On April 18, 2018, the staff of PJSC Tupolev was commended by the President of Russia for their significant contributions to the aviation industry and their achievements in their work. This prestigious recognition was presented to Alexander Konyukhov, CEO of PJSC Tupolev, by Arkady Dvorkovich, Deputy Chairman of the Government of the Russian Federation. The award ceremony took place during an expanded meeting of the Board of the Ministry of Industry and Trade of the Russian Federation.
